Creating Offline-First Applications

Over the last few years, a new application paradigm has become popular: Offline-First applications. Offline-First applications are web applications that feel like local applications in terms of interactivity and responsiveness.

Lately, I have been involved with this development approach while I was implementing Bezier, a tool for writing system documentation, and after months of diving into it, I would like to share with you how this type of system works.

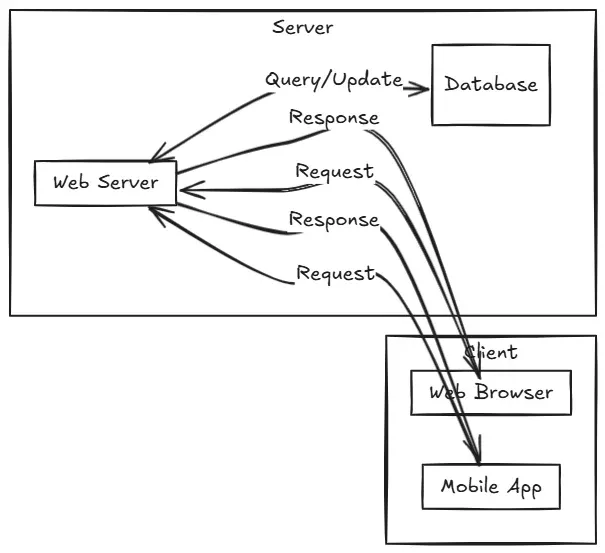

The Client-Server Architecture

Most web applications follow a Client-Server architecture where the user interacts with a page in the browser, and the page executes calls to an external server to perform some operations like storing data on a database or making a processing operation.

This architecture has led the design of applications during all this time; almost all the web applications and even desktop and mobile applications you are using today are implemented under a variation of this paradigm.

Due to its distributed nature, this approach faces the common pitfalls of distributed systems, including latency, ensuring data consistency, and guaranteeing system uptime.

Latency

Latency means the time of sending a message from one site to another, for example, to register a user. The browser makes a request to the server, the server sends the request to the database, and then the response is routed back. Most of the time of those requests is not processing time; it is latency. That’s why on localhost we almost have no wait times on requests, while in remote environments we have to wait 100-500ms for responses.

To represent this time, developers usually block the UI and put a loader to tell the user something is being processed. After a certain time, the loader stops and the user can continue using the application.

Integrity

Now imagine you have two clients editing the same data like a filesystem. If user A decides to delete the file foo.txt, and user B does not see the change, the system stops being reliable. If user B tries to access the deleted file, likely he will receive an error.

This type of error is related to the consistency and integrity of the data. To handle this, developers usually have to implement some integrity services and use heavy, reliable infrastructure.

Availability

Now imagine the application just goes offline. It does not work anymore. Most of the time developers will show a message like Something went wrong. Try again later, but the user is unable to continue using the application.

Can you imagine if you could not use applications like Google Docs just because you lost connection? It would be awful, and it can be done offline, so why not delegate the writing process to the client instead of doing it on the server?

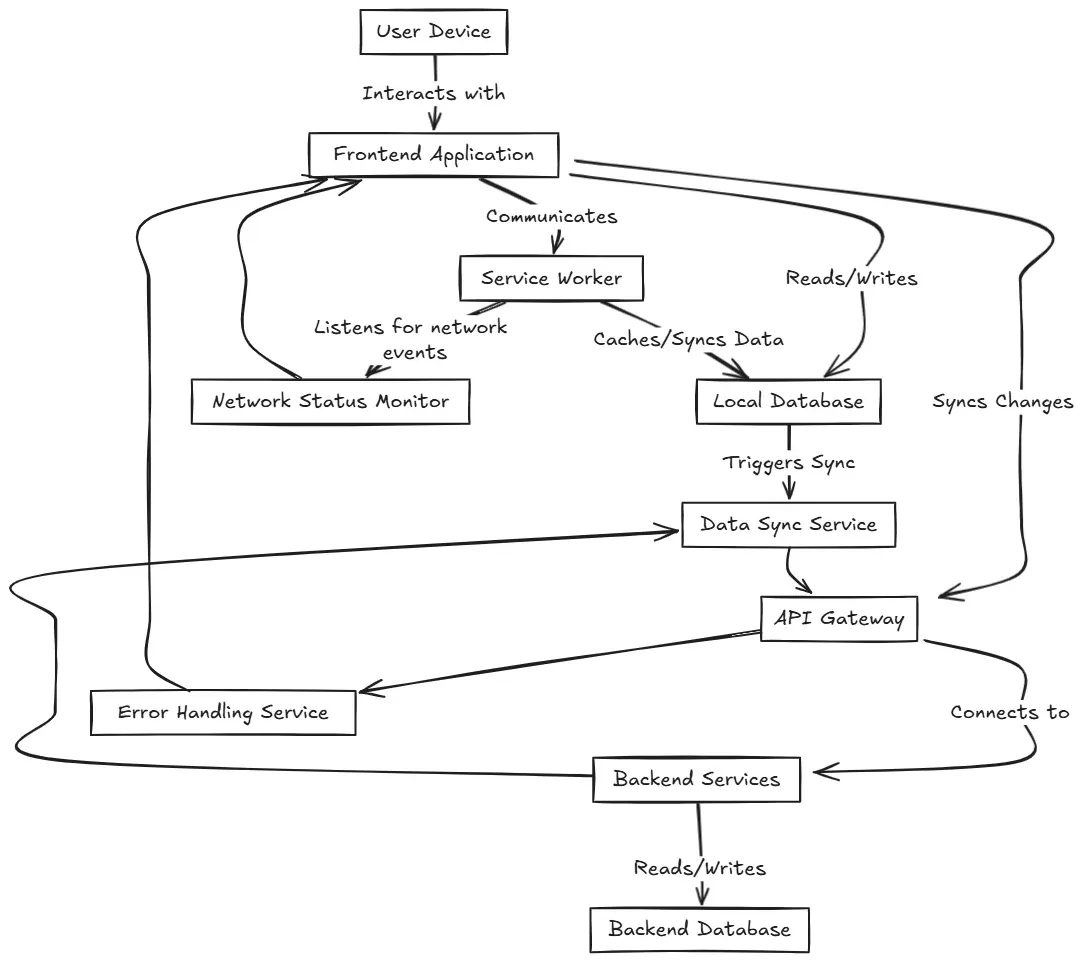

Presenting Offline-First Applications

Offline-First applications resolve most of the problems related to distributed systems by adding more complexity to the data layer and backend services.

The idea of this approach is to remove the dependency on the server to allow the application to work by storing mutations and changes locally and sending them as soon as the server is available again.

How do Offline-First Applications Work?

Explaining how this framework works is better with an example, so let’s take my application, Bezier. A tool for writing beautiful documentation and design systems with diagrams.

Client Side

The first time the user enters the workspace, the client gets the website from the server, and it executes certain scripts to persist the data locally in the browser. From now on, the main database for the client application is the IndexedDB of the browser; the frontend gets all the data from there.

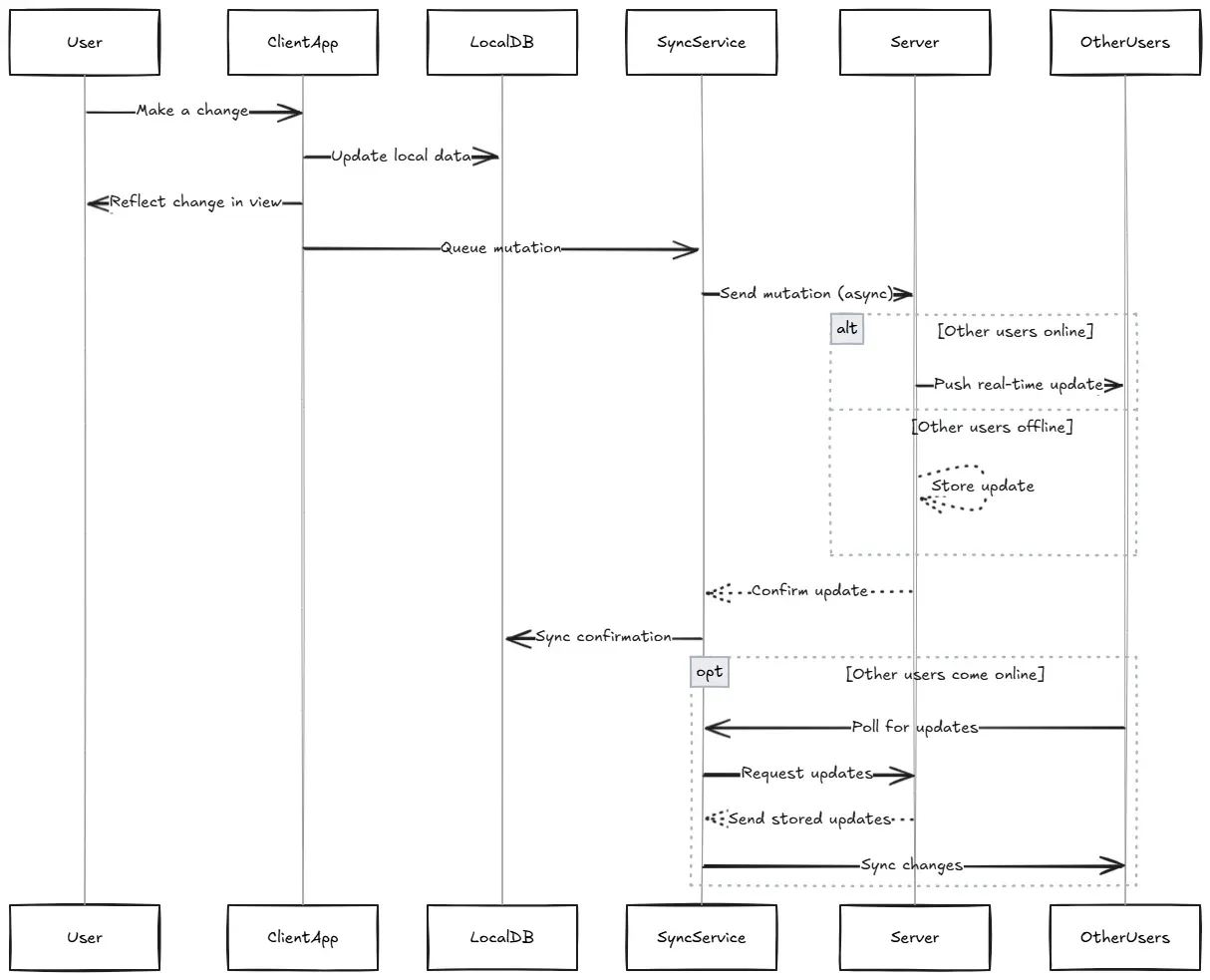

When the user makes a change—for example, creates a new project (Story)—it triggers a mutator. A mutator is a service that makes the write operations on the database and enqueues the mutations in a synchronization service, performing an optimistic update. An optimistic update is an operation that executes the transaction without considering the future response, so in this case, it creates the project immediately for the user, and the user can interact with it while the backend is processing the request or even before receiving it!

The sync service is compounded by three elements: a polling service that makes requests to the server every X seconds to pull new data, a message service that receives async messages using tools like Pusher to detect changes from other clients in real-time, and a push service that sends all the queued mutations.

Let’s suppose a team member was connected in the same workspace at that time. If that user is online, the system would receive a real-time Pusher event, and the sync service would mutate the database and refresh the view. Since the frontend reads from the local database, it will show the new project created. If the user was offline, once they are online again, the polling service will receive a response from the server with the changes made, then update the local database and trigger a view refresh.

Server Side

One of the drawbacks of this architecture is that the implementation of the backend services is highly tied to the sync service. Of course, you can decouple the business services, but the data model must be updated to add some fields, and most updates must be done through a controller instead of using different endpoints, since the polling service on clients makes requests to this endpoint every X seconds.

There are four main strategies to pull and push data in this paradigm: Reset, Global Version, Per-Space, and Row Version. You can learn more about them in the documentation of Replicache, but I will write more articles about them in the future. For now, here is a brief description:

• Reset Strategy: It is similar to a PUT operation. Every time a client makes a change, push everything to the database to replace the existing version of all the resources with a new one. Other clients pull all the changes too. This means a waste of resources, but quite an easy implementation.
• Global Version Strategy: We add a field on the mutable entities to indicate the current version of the entity. After a change, we add one to that field, and all the clients sync their data starting from the last version. All data is synced to all users, so this means we cannot have private workspaces or channels.
• Per-Space Strategy: Additionally to the version field of the last approach, we add another field to identify the workspace of the resource. This way, if a user in workspace W makes a change, users on workspace X do not pull changes since they were filtered by space.
• Row Version Strategy: It uses an artifact named Client View Records (CVRs). Those are structures that contain all the data that is seen by a client at a given time. So if there is a change, it can be computed by comparing the last and new CVR.

On Bezier, I used a Per-Space Strategy, since it seemed the most indicated for the task and its simplicity. The outline of the implementation is something like this:

Pushing Data

• Verify the client belongs to the workspace.
• Increase the mutations version for the client (changes made by the client) and client group.
• Add the mutation increasing one to the mutation version for that resource and workspace.
• Call the message service (Pusher) to notify all the subscribed clients of the change.

Pulling Data

• Client makes a pull request with its current version (changes made by the client).
• Verify the client belongs to the workspace.
• Get all the records of that space that have a greater version than the current version.
• The client updates its data and its current version.

We will see this deeper in future posts. For now, it is a good approach to the topic and shows you how to manage versions of a resource that can be shared across many clients.

Consistency

You might be wondering about potential conflicts. Conflicts are a common occurrence in any system, and this one is no exception. While there are various consistency models, Causal Consistency is one of the most robust and is the approach used by Replicache, the library I used in Bezier and as a reference for this post.

Causal Consistency

Causal Consistency - Causal consistency is a model that guarantees that operations that are logically connected will be observed in the same sequence by all processes within a system.

jepsen.io

Causal consistency is a model that guarantees that operations that are logically connected will be observed in the same sequence by all processes within a system. This means that if one operation is dependent on another, all processes will see them in the correct order.

Here is an example scenario:

• User A creates a document titled “Document 1” and adds a few points.
• User B also creates a document titled “Document 1” and adds a different set of points. Since A and B are the same operation, the systems agree that there is a redundant operation and updates the local system with the created one on the server.
• User A and User B both edit their documents offline.
• When the devices reconnect, the app uses causal consistency to determine the correct order of operations and merge the changes.
• The final document might include both sets of points, or remove one.

The key here is having just atomic operations put and delete. This way operations are easily mergeable and can be ordered in time by their dependencies when the last version field does not allow identifying what was the first mutation.

The Bottom Line

Today we learned the basics of how offline-first applications work and some important concepts for implementation and design. In future posts, I will extend this topic to explain in a deeper way all the things related to the strategies to push and pull data, and expand the theory about consistency models focused on distributed systems.
